Meandros Full Edition B28 Handle


Out of stock

SKU: HPB28 SD Category:

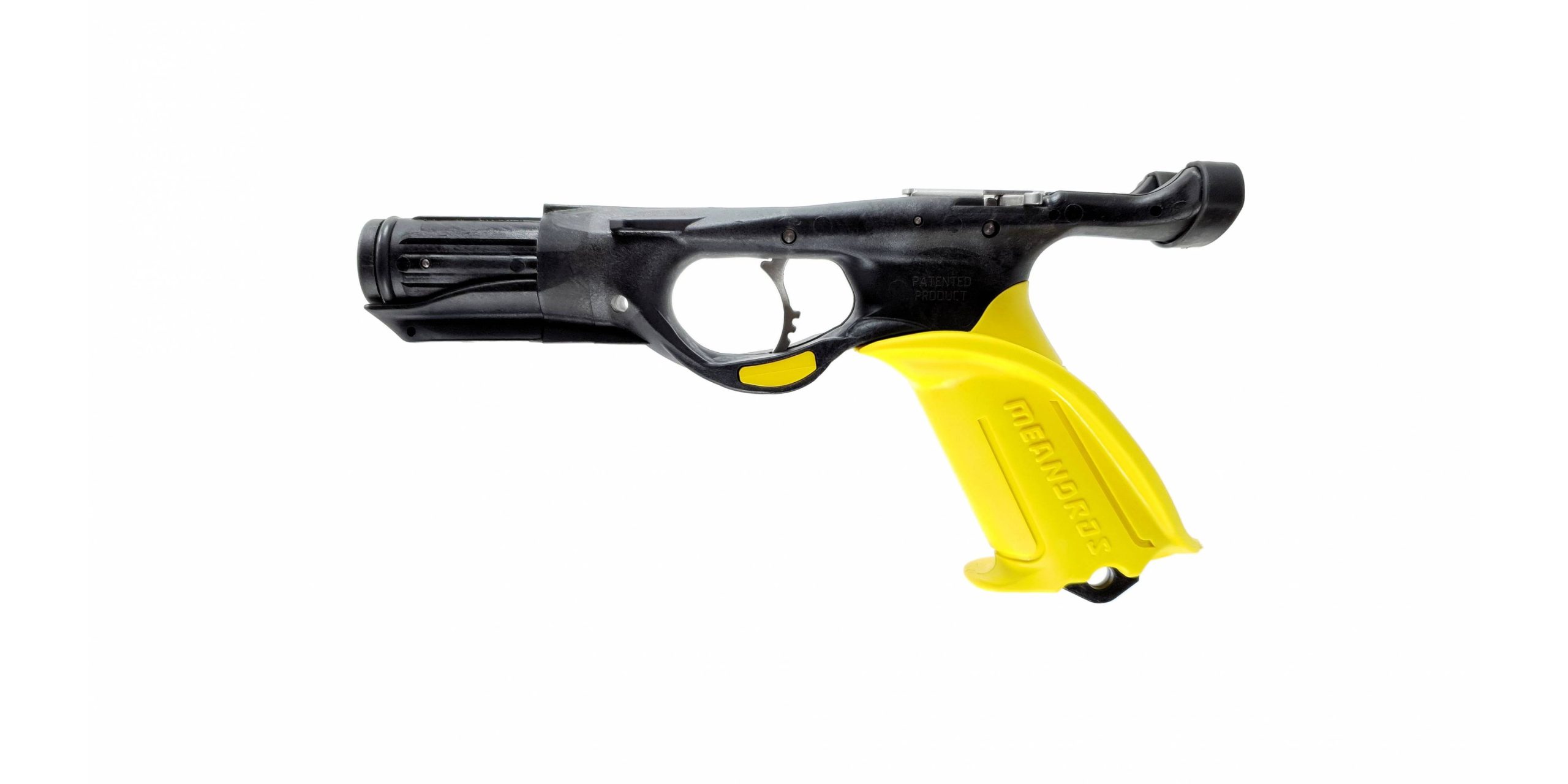

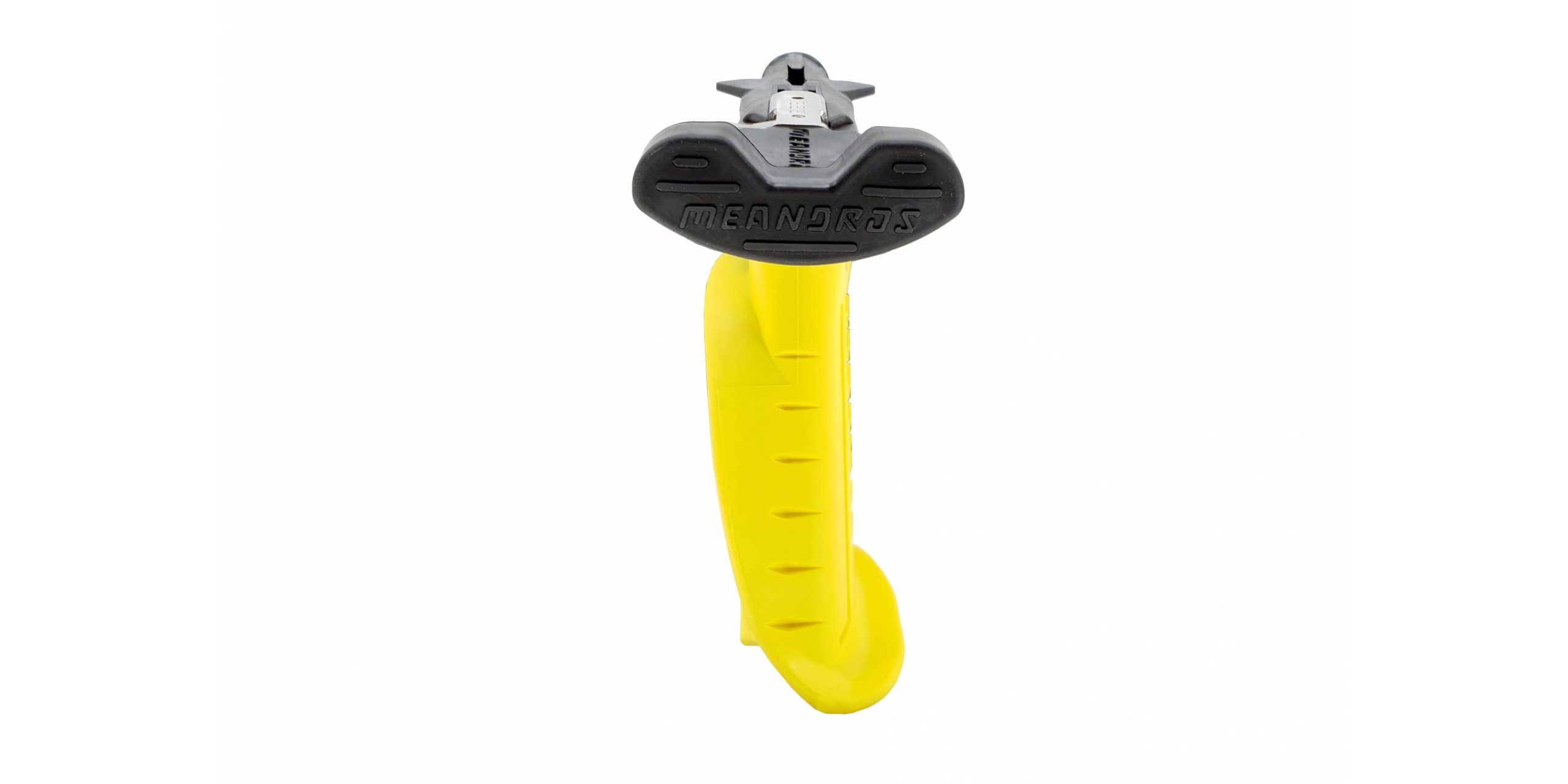

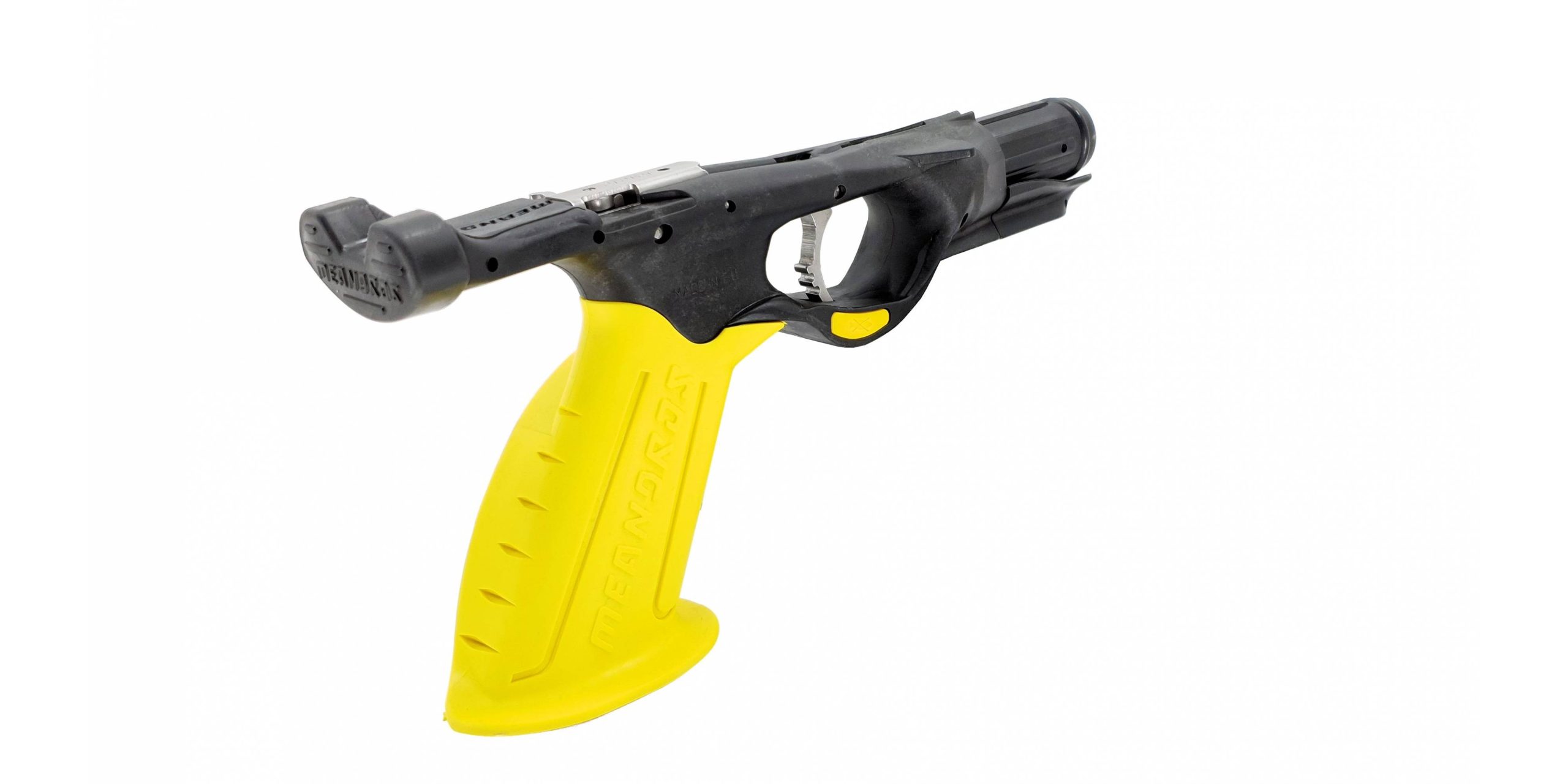

Speare handle to fit into a tube gun with a 26mm diameter such as the B28 Meandros Range and other brands. These handles are exceptionally popular across the world for DIY spearguns being made from custom carbon barrels like Carbonio, Soriatec and others.

The internationally leading absolute handle is called LEADER and is a creation of MEANDROS.

It is incomparable, does not follow established design and construction standards, but it leads, pioneers and leads the rest.

It has been designed and studied to overcome the common problems and weaknesses to all parameters, offering the user a high quality experience in terms of anatomy, use, construction, long-term reliability and excellent operation of all the mechanical parts.

The handle consists of aesthetics and anatomic design that impress with a particularly low profile that offers a friendly, comfortable and convenient grip that instantly receives hand commands without the slightest nuisance in the palm of the user. The inclination and conic geometry of the grip allows for palm embracing sizes ranging from  S – XXL that the user views as an extension of his arm.

The body of the handle in terms of material and static, despite it’s extremely low profile, which contributes greatly to agility, reduced recoil and index aiming with the palm index finger rather than the eye, and its compressed outer dimensions, corresponds with absolute success to large loads with almost zero distortion of both the sight and the shot.

It is accompanied by an innovative, patent  inox inverted mechanism, of minimal weight, but also robust, powerful and reliable, with excellent ergonomics designed to work seamlessly.

The mechanism is produced in 2 versions depending on the model of the speargun:

A) with a classic type  inverted shaft hook.    B) with a (pin roller system – upon request)

The PIN ROLLER system has been designed and designed to bypass all common problems in the construction, use, longevity of existing complex and multi-sync systems that interfere with trigger sensitivity.

It offers reduced friction with zero wear at the point of contact with the bar but also distributes the load received from the bar at 3 pointsTwo contact points at the housing and one point at the hook which now accepts a small part of the pressure exerted and not 100% of it. The hook now has a much lower pressure at the point of contact with the trigger, with the result that the pressure exerted on the trigger to release the shaft is much less than a classic type reverse mechanism.

The angle of inclination of the oval hole which slides inside the engagement shaft reduces and reverses the torque by determining the pressure load to be applied to the trigger. The strong negative inclination of the oval hole can even reset the applied pressure on the line release extension exercised on the trigger. This system gives us the advantage of simplifying the construction without compromises and sacrifices on the trigger sensitivity issue caused by the pressure load at the point of contact with the engagement hook and thus bypasses disadvantages of more complex systems with roller bearings contact with the trigger and with additional components used in the assembly and operation intended regarding the trigger sensitivity of the mechanism.

The innovation of the trigger outside the cassette mechanism has huge advantages such as the minimum weight of the (heavy duty) metal mechanism, minimal external dimensions, static strength and grip deformation. The indentation at the back of the trigger gives elegance with minimal weight, is a patented visual feature point of our mechanisms.

Maintenance, disassembly, repair and replacement will not concern the user.

Changing the line release side has never been so easy, it is performed simply, quickly without extracting and disassembling the mechanism. The ambidextrous line release operates independently of the trigger and spear, preventing the heavy-stiff trigger effect, deformation of the spear and distortion of the shot.

The excellent line of sight, unaffected sensitivity with a small trigger pull path, for MEANDROS are self-evident concepts.

The square V-shaped shape spear guide  (and not the U-type) touches the spear at 3 points, giving precise position, slip and reduced friction. In addition, there is a visible and accessible hole that communicates with a micro-chamber inside the handle, draining the amount of water trapped during the dive due to inertia.

The barrel sealing is made with a special cap fitted to the handle, which eliminates the possibility of inflow even at extremely deep depths. Also for the most demanding users there is the possibility of adapting a vibration damping system.
The line lengths are fastened with great ease, ambidextrously, close to the handle / barrel body by ergonomic horizontal deflectors, in a position well above the center of the handle, preventing bumps, jams and swings occurring with the protruding angled outlets from the side handle.

The trigger guard In addition to having the safety switch and securing the trigger, has been designed to provide a comfortable resting & relaxation point for the index finger and depressing the trigger at a correct distance from its point of rotation. It can be fitted into a tubular pipe of 26.0 mm, 29.0 mm in diameter, as well as an oval barrel version.

Any version of the LEADER Handle you choose will immediately make you feel that it is not just a handle but a great tool and the extension of your hand that will capture the prey that your index finger will aim at.

  • High-strength plastic stiff construction material.
  • Particularly low profile.
  • Fuse trigger safety in to the trigger guard  (that doesn’t stand out from the handle).
  • An RIGHT anatomic grip made of anti-slip, antiallergic material.
  • Anatomic loading pad.
  • Inverted stainless steel cassette mechanism with remote trigger.
  • Advanced desing trigger mechanism, full inox / heavy duty of minimum weight.
  • Advanced desing trigger mechanism, load distibutiion system  (pin roller – upon request).
  • Ambidextrous line release.
  • Reduced friction rail.
  • Micro cave water balance.
  • Sealing cap (plung) with counter balance set  M8 inox srew system.
  • Ambidextrous yarn deflectors.
  • Multiple use auxiliary hole.
  • Heavy duty connection hole to the float.
  • Male fit in tube of inner diameter 26.0 mm.
  • Reel base
